产品描述: Output AC Reactor is applied to smoothing the circuit and filter harmonics in order to reduce the transient voltage dt/dv and extend the service life of the electric motors, which reduces the motor noise, eddy loss and leakage current resulting from the output of high harmonics and protects the power switch within the inverters.

产品详情

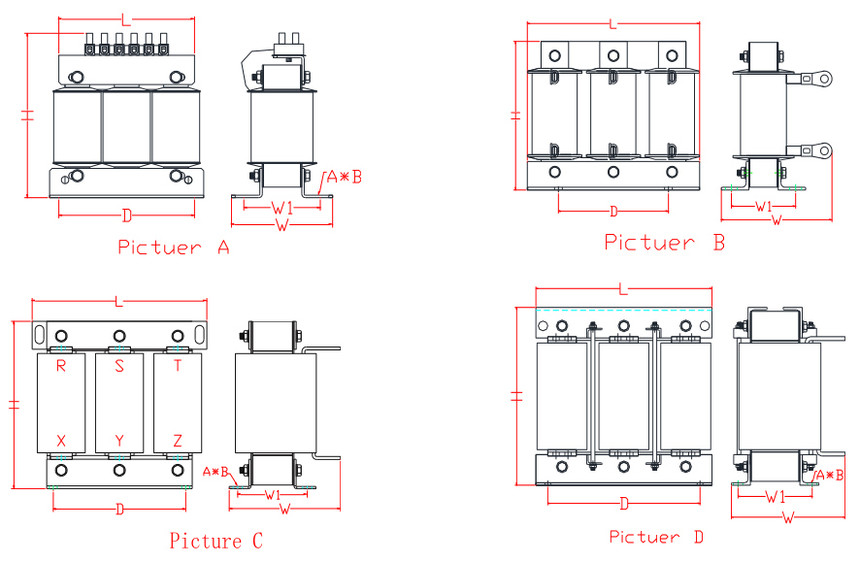

产品尺寸

产品特点(ProductFeatures)

三相交流输出电抗器：可以根据客户使用频率的高低合理选取磁性材料（硅钢片，铁氧体，非晶铁心，磁粉芯）；采用了高性能的销式绕组结构，具有直流电阻小，抗电磁力能力强，短时间过载能力强；采用高性能的F级以上的复合绝缘材料，使产品在严酷的工作条件下依然可以保持可靠的性能；电抗器设计磁通密度低，线性度好，过载能力强，配合真空压力浸渍工艺电抗器噪音小。

Different choices of magnetic materials (Silicon steel sheets, ferrite material or amorphous core) are available to match the frequencies of different application. Due to the excellent foil winding structure, Output AC Reactor is characterized by small DC resistance, strong resistance to electromagnetic interference and strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating conditions;Designed with low magnetic flux density , the reactor is of high linearity and powerful overload capacity. Moreover, combined with VPI process, the reactor noise is low.

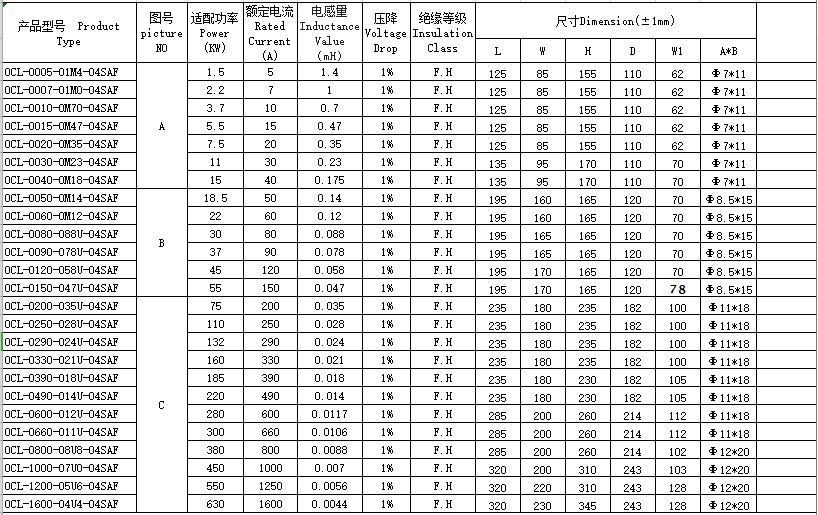

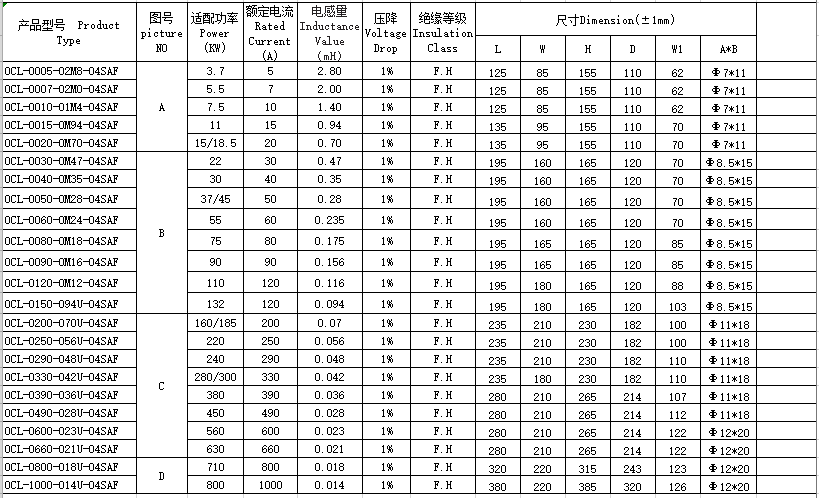

技术参数(Technical Data)

1 、额定工作电压：380VAC-1140VAC 50/60Hz

2、额定工作电流：5A-1 600A@45°C

3、抗电强度：绕组－铁芯 3500VA C/ 5 0Hz/ 5mA/ 6 0s 无飞弧击穿（工厂测试）

4、绝缘电阻：绕组－铁芯 lOOOVDC, 绝缘阻值 ≥100MΩ

5、电抗器噪音：≤75dB（距电抗器水平距离 1 米测试）

6、绝缘等级：F/ H 级

7、防护等级：IP00

8、最大电流：1.5 倍额定电流，持续时间≤60 s

9、温升：≤95K

10、海拔高度：≤1500 米

11、运行环境：温度-25 °C ~ 45°C , 相对湿度≤95%
